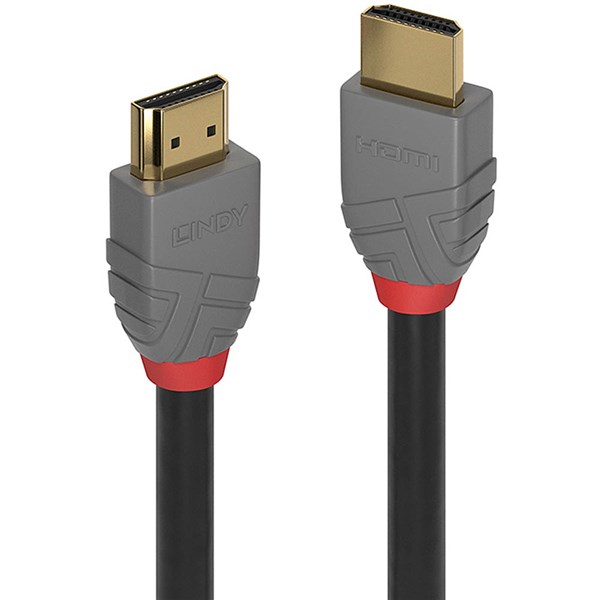

LINDY 36962 ANTHRA LINE HIGH SPEED HDMI CABLE 1M BLACK

Code: 7103949   Brand: LINDY
From the Lines cable connectivity concept developed by Lindy, Anthra Line HDMI cables are the professional choice for high performance connections in commercial AV and IT installations
| Anthra Line HDMI cables are premium connections that feature triple shielded with 30AWG copper conductors for performance and corrosion resistance
| High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability
| UHD resolutions up to 4K 4096 x 2160 at 60Hz 4:4:4 8bit are supported
| Anthra Line HDMI cables are also capable of transmitting 32 channel audio and Dolby True HD
| The HDMI 2.0 specification is supported for 18Gbps bandwidth capacity
| Professional choice High Speed HDMI 2.0 cable for commercial and high performance AV and IT installations
| Supports UHD resolutions up to 4096 x 2160 at 60Hz and HDTV resolutions up to 1080p
| Robust PVC housing, 24K gold plated connectors and contacts
| Triple shielded cable, corrosion resistant tinned copper 30AWG conductors
| HDMI 2.0 compliant: 3D, 4K, 18Gbps, HEC, ARC, CEC, Dolby True HD, DTS-HD Master Audio; HDMI ATC certified
| 10 year warranty

$20.41

EACH
Please note: Prices are shown excluding GST (where applicable) and are in AUD$
SPECIFICATIONS
| CONNECTORS
| Connector A: HDMI Type A Male
| Connector B: HDMI Type A Male
| Housing Material: PVC
| Connector Plating: 24K Gold 3um
| Pin Construction: Phosphor Copper
| Pin Plating: 24K Gold 3um
| Dimensions: 20 x 34.2 x 10.9mm
|
| CABLE CONSTRUCTION
| Length: 1.0m
| Standard: High Speed HDMI with Ethernet
| Colour: Black
| Type: Round
| Jacket Diameter: 6mm
| Jacket Material: PVC
| Conductor Material: Copper
| Conductor Gauge: 30AWG
| Shielding: Copper Braid, 65%
| Supported Bandwidth: 18Gbps
| Maximum Resolution: 4096 x 2160 at 60Hz 4:4:4 8bit
| Nominal Attenuation: 300kHz-825MHz less than 5dB, 825MHz-2.475GHz less than 5dB, 2.475GHz-4.125GHz less than 12dB, 4.125GHz-5.1GHz less than 20dB
| Minumum Band Radius: 48mm
| Operating Temperature: -30C - 80C
| Storage Temperature: -10C - 85C
| ATC Approved: Yes
|
| MISCELLANEOUS
| Packaging Type: Polybag
| Warranty: 10 Years
| Certificated: RoHS, REACH, UL, ATC
| OEM: 36962
